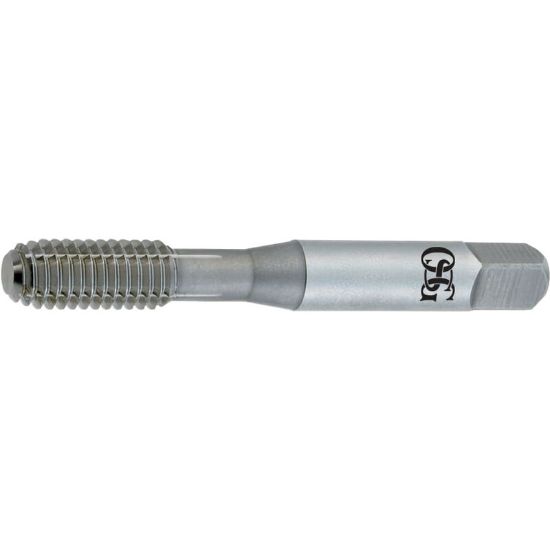

OSG 2865800 1/4-20.00TPI Roll Form Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2865800
Delivery date: 3-5 days
$9.39

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Roll Form Tapping, Bottom Tapping, Tapping, Blind Hole Tapping
Package Size 1
Performance Rating General Performance
Shipping State Illinois
Dimensional Specifications
Thread Pitch 20.00TPI
Thread Type NC/UNC
Length Type Standard
Tap Style Roll Form
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Chamfer 1.5P-2.0P
Shank/Pilot Dia 0.2550 6.48MM
Dimension Standard ANSI/ANSI
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Thread Size 1/4"
Thread Limit 2B
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
