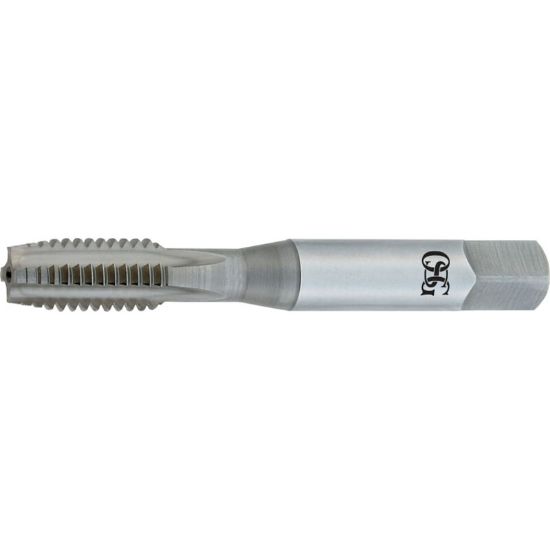

OSG 2410603 M5-0.80MM Cut Straight Flute Bottoming 1.5P-2.0P HSSE Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2410603
Delivery date: 3-5 days
$14.11

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Blind Hole Tapping, Bottom Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Coating Nitride
Package Size 1
Dimensional Specifications
Thread Size M5
Flutes/Inserts 3
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Thread Pitch 0.80MM
Thread Type Metric
Flute Direction R - Right
Tap Square 0.2520
Length Type Standard
Tap Type Bottoming
Tool Material Steel
Overall Len 2.3622 60.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Graphite, Plastic
Shank/Pilot Dia 0.1937 4.92MM
Tap Style Cut Straight Flute
Tap Chamfer 1.5P-2.0P
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
