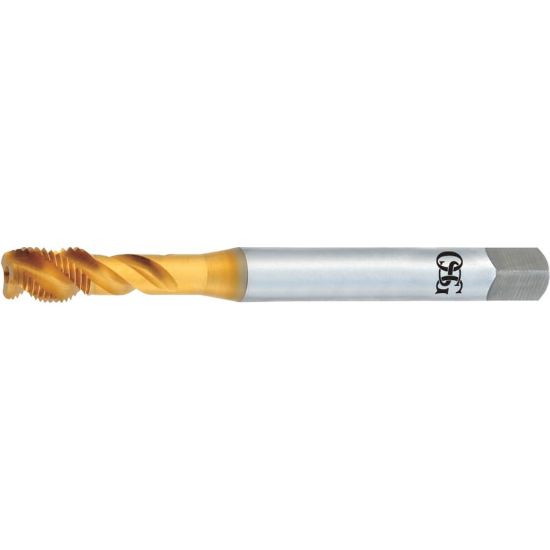

OSG 2392305 M12-1.75MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2392305
Delivery date: 3-5 days
$69.52

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Package Size 1
Coating TiN
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Size M12
Flutes/Inserts 3
Thread Limit 6H
Tap Style Cut Spiral Flute
Thread Pitch 1.75MM
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Type Mod Bottom
Flute Direction R - Right
Overall Len 4.3307 110.00MM
Length Type Standard
Tool Material Steel
Thread Type Metric
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.3670 9.32MM
Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Tap Chamfer 2.5P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
