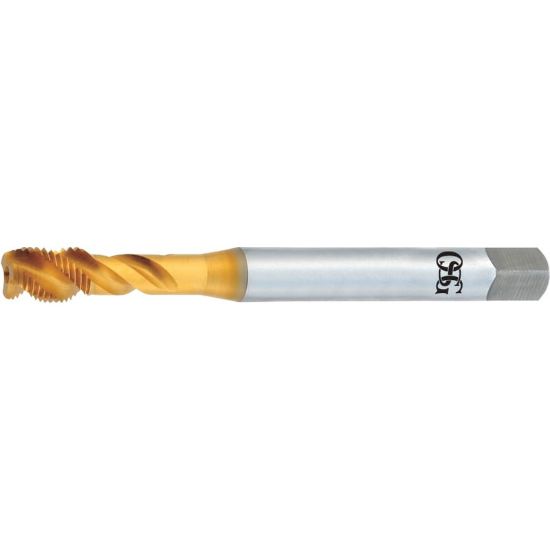

OSG 2391805 M6-1.00MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2391805
Delivery date: 3-5 days
$61.14

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Illinois
Coating TiN
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Limit 6H
Tap Square 0.2860
Tap Style Cut Spiral Flute
Tool Material Steel
Overall Len 3.9370 100.00MM
Thread Size M6
Flutes/Inserts 3
Thread Type Metric
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Chamfer 2.5P-3.0P
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Type Mod Bottom
Flute Direction R - Right
Dimension Standard DINSI
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
