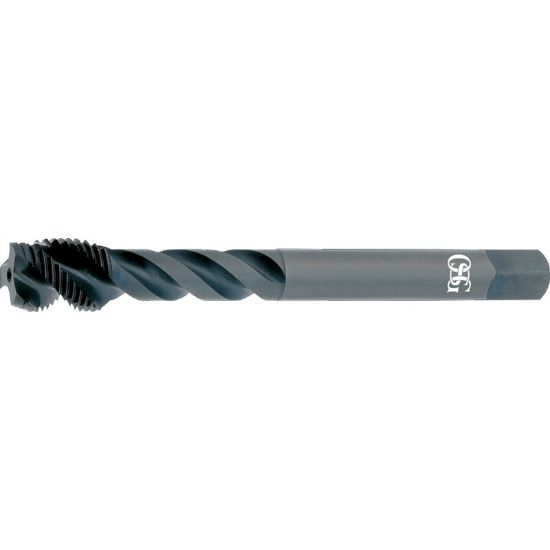

OSG 2217801 No.8-32.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2217801
Delivery date: 3-5 days
$17.17

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Coating Steam Oxide
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Style Cut Spiral Flute
Dimension Standard ANSI/ANSI
Thread Pitch 32.00TPI
Thread Limit 2B
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Chamfer 2.5P-3.0P
Machine Side Connection Type Tap Collet
Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Type Mod Bottom
Thread Type NC/UNC
Flute Direction R - Right
Shank/Pilot Dia 0.1670 4.24MM
Tap Square 0.1310
Length Type Standard
Thread Size No.8
Overall Len 2.4800 62.99MM
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
