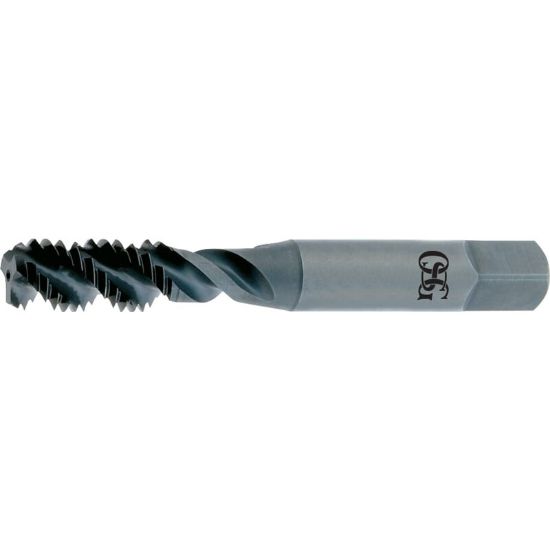

OSG 1986701 M10-1.50MM Cut Spiral Flute Bottoming 1.5P-2.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1986701
Delivery date: 3-5 days
$27.57

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Package Size 1
Coating Steam Oxide
Dimensional Specifications
Thread Size M10
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.3807 9.67MM
Overall Len 2.9134 74.00MM
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Thread Pitch 1.50MM
Tool Material Steel
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Type Metric
Thread Limit D6
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Square 0.2860
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
