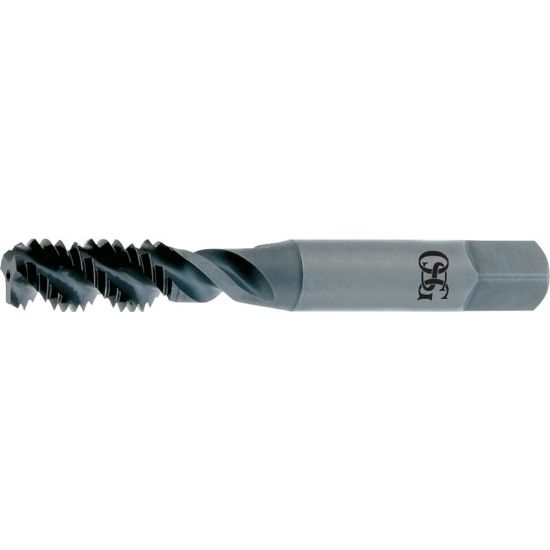

OSG 1985100 M3-0.50MM Cut Spiral Point Plug 4.0P-4.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1985100
Delivery date: 3-5 days
$14.64

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Thread Limit D3
Flute Direction R - Right
Flutes/Inserts 2
Length Type Standard
Thread Size M3
Thread Type Metric
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 1.9291 49.00MM
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Thread Pitch 0.50MM
Shank/Pilot Dia 0.1410 3.58MM
Tap Type Plug
Tap Chamfer 4.0P-4.5P
Tool Material Steel
Tap Square 0.1100
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
