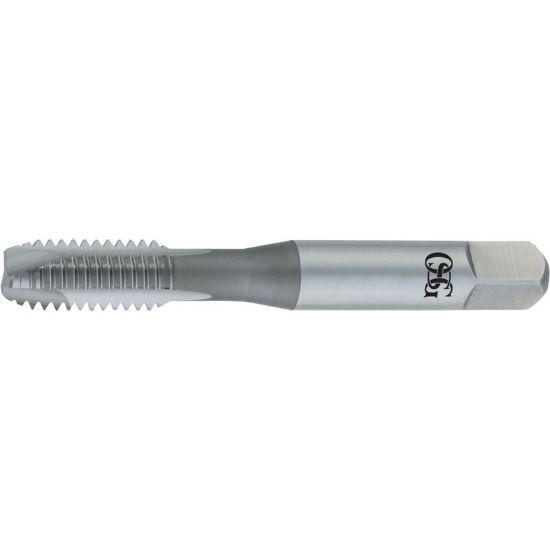

OSG 1983700 M20-2.50MM Cut Spiral Point Plug 3.5P-4.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1983700
Delivery date: 3-5 days
$65.83

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State Illinois
Package Size 1
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Thread Pitch 2.50MM
Thread Type Metric
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.6850 17.40MM - 0.7106 18.05MM
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Flutes/Inserts 3
Thread Limit D7
Tool Material Steel
Thread Size M20
Flute Direction R - Right
Overall Len 4.4488 113.00MM
Length Type Standard
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.6520 16.56MM
Tap Square 0.4890
Tap Chamfer 3.5P-4.5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
