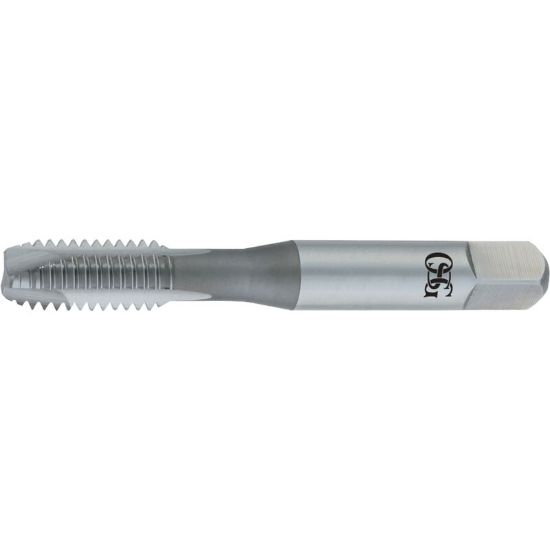

OSG 1981305 M8-1.25MM Cut Spiral Point Plug 3.5P-4.5P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1981305
Delivery date: 3-5 days
$14.62

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Coating TiN
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Flute Direction R - Right
Length Type Standard
Thread Size M8
Thread Type Metric
Tap Square 0.2380
Tap Type Plug
Thread Limit D5
Tap Style Cut Spiral Point
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.7165 69.00MM
Tap Chamfer 3.5P-4.5P
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 2
Drill Range 0.2740 6.96MM - 0.2843 7.22MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
