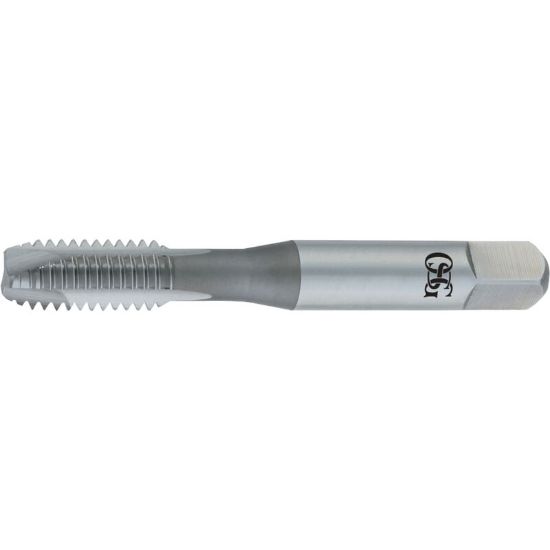

OSG 1981000 M6-1.00MM Cut Spiral Point Plug 3.5P-4.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1981000
Delivery date: 3-5 days
$8.56

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Made In USA No
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Tap Square 0.1910
Thread Size M6
Tool Material Steel
Thread Type Metric
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Chamfer 3.5P-4.5P
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Style Cut Spiral Point
Overall Len 2.4803 63.00MM
Tap Type Plug
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
