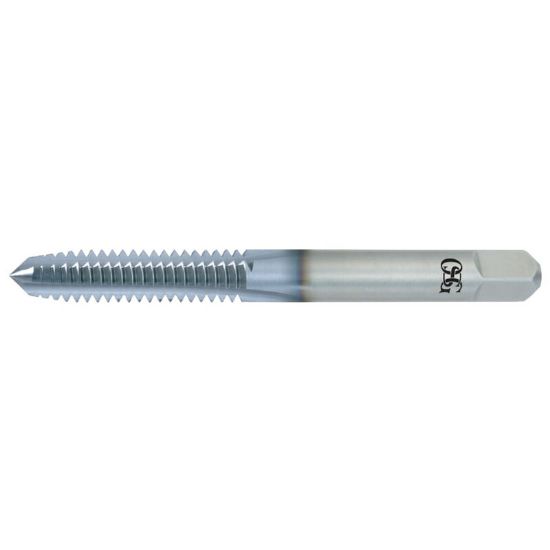

OSG 1971100 M6-1.00MM Hand Tap Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1971100
Delivery date: 3-5 days
$7.48

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Blind Hole Tapping, Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 4
Tap Style Hand Tap
Tool Material Steel
Thread Limit D5
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Tap Square 0.1910
Tap Chamfer 1.5P-2.0P
Thread Type Metric
Overall Len 2.4803 63.00MM
Thread Size M6
Shank/Pilot Dia 0.2547 6.47MM
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
