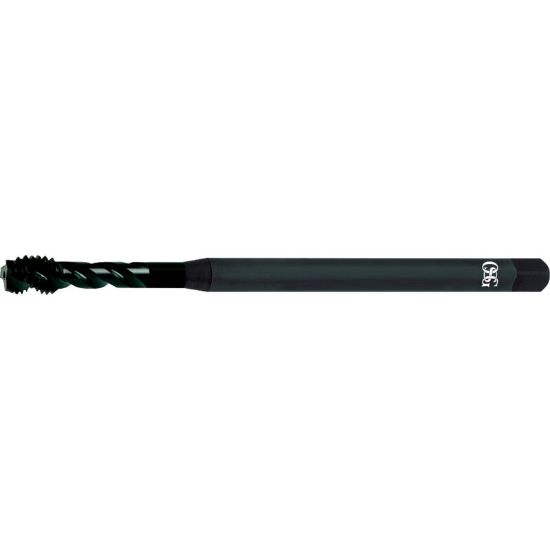

OSG 1767901 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1767901
Delivery date: 3-5 days
$43.43

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Mod Bottom Tapping
Coating Steam Oxide
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Long
Thread Size 1/4"
Tap Chamfer 2.5P-3.0P
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Tap Square 0.1910
Tap Style Cut Spiral Flute
Dimension Standard ANSI/4"
Flutes/Inserts 3
Shank/Pilot Dia 0.2550 6.48MM
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
