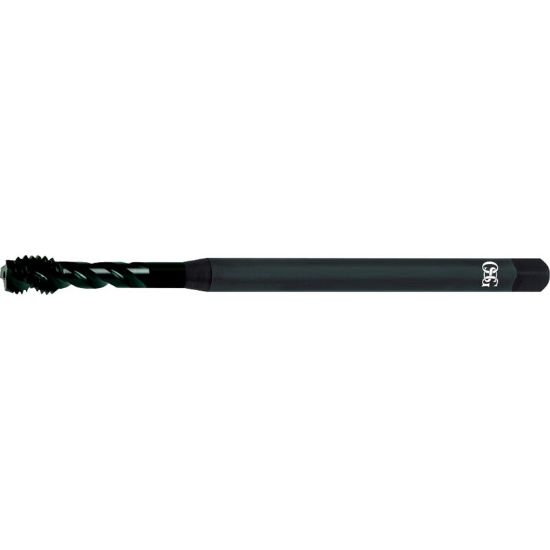

OSG 1767501 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1767501
Delivery date: 3-5 days
$51.35

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Coating Steam Oxide
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating General Performance
Dimensional Specifications
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Dimension Standard ANSI/4"
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Tap Chamfer 2.5P-3.0P
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 4.0000 101.60MM
Tap Square 0.1520
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
