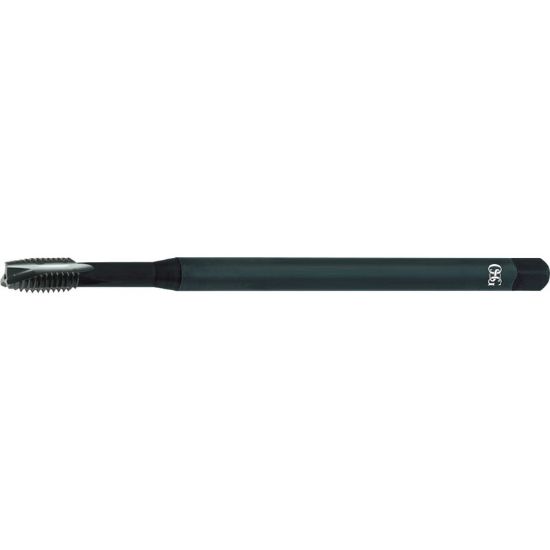

OSG 1765601 5/8-11.00TPI Cut Spiral Point Plug 3.5P-4.5P HSSE Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1765601
Delivery date: 3-5 days
$79.09

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Coating Steam Oxide
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Flute Direction R - Right
Thread Size 5/8"
Overall Len 6.0000 152.40MM
Tap Type Plug
Tap Chamfer 3.5P-4.5P
Thread Limit H4/GH4
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Type NC/UNC
Dimension Standard ANSI/6"
Length Type Long
Thread Pitch 11.00TPI
Shank/Pilot Dia 0.4800 12.19MM
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3590
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
