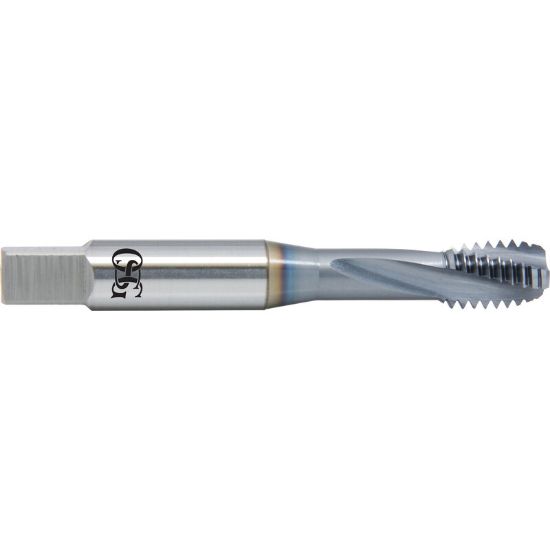

OSG 1753601 5/8-11.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1753601
Delivery date: 3-5 days
$102.31

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating Steam Oxide
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Type NC/UNC
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Thread Pitch 11.00TPI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size 5/8"
Thread Limit H4/GH4
Dimension Standard ANSI/ANSI
Overall Len 3.8120 96.82MM
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Tap Chamfer 2.5P-3.0P
Shank/Pilot Dia 0.4800 12.19MM
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
