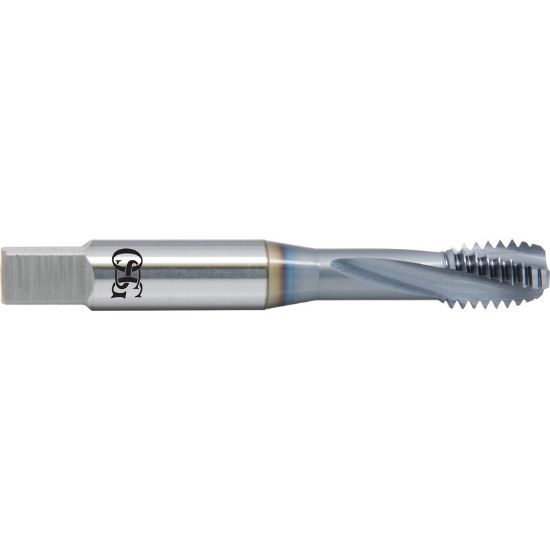

OSG 1753001 3/8-16.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1753001
Delivery date: 3-5 days
$37.01

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Coating Steam Oxide
Application Mod Bottom Tapping, Cut Tapping, Tapping
Made In USA No
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Flutes/Inserts 3
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Chamfer 2.5P-3.0P
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Shank/Pilot Dia 0.3810 9.68MM
Overall Len 2.9370 74.60MM
Length Type Standard
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Thread Size 3/8"
Tap Square 0.2860
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
