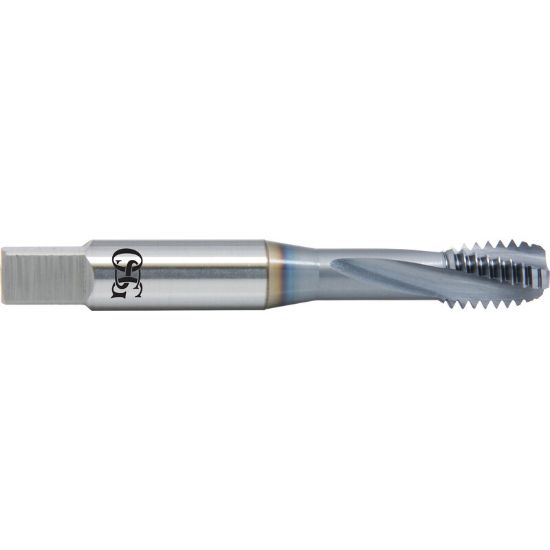

OSG 1752601 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1752601
Delivery date: 3-5 days
$29.97

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating Steam Oxide
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Thread Size 1/4"
Flutes/Inserts 3
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Flute Direction R - Right
Length Type Standard
Dimension Standard ANSI/ANSI
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Chamfer 2.5P-3.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
