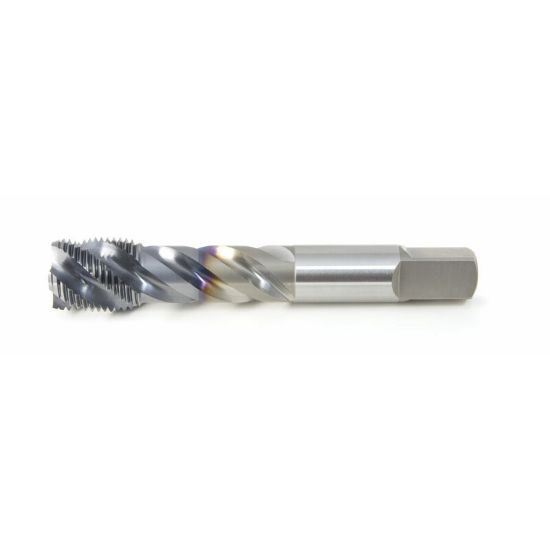

OSG 1733001 3/8-16.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1733001
Delivery date: 3-5 days
$30.84

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Coating Steam Oxide
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tool Material Steel
Overall Len 2.9370 74.60MM
Thread Size 3/8"
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Pitch 16.00TPI
Tap Chamfer 2.5P-3.0P
Tap Square 0.2860
Tap Style Cut Spiral Flute
Cut Rating <30HRC Steel, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
