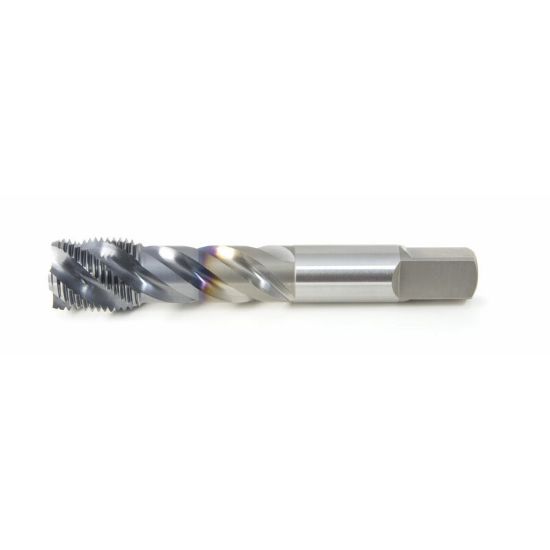

OSG 1732201 No.6-32.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1732201
Delivery date: 3-5 days
$22.20

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating Steam Oxide
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Thread Pitch 32.00TPI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Chamfer 2.5P-3.0P
Dimension Standard ANSI/ANSI
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Tap Square 0.1100
Thread Size No.6
Flutes/Inserts 3
Shank/Pilot Dia 0.1020 2.59MM
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
