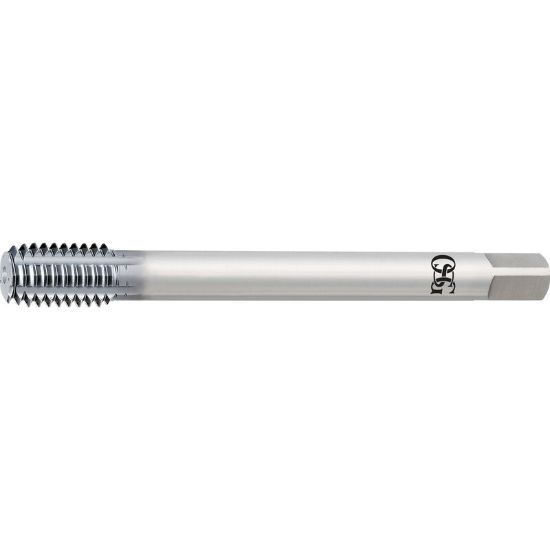

OSG 1635016353 M1.6-0.35MM Roll Form Mod Bottom 2.5P HSS-CO TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1635016353
Delivery date: 3-5 days
$51.50

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Coating TiCN
Package Size 1
Application Tapping, Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Size M1.6
Thread Pitch 0.35MM
Tool Material Steel
Overall Len 1.5748 40.00MM
Tap Square 0.1100
Tap Style Roll Form
Dimension Standard ANSI/ANSI
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Thread Type Metric
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Length Type Standard
Tap Chamfer 2.5P
Thread Limit D3
Shank/Pilot Dia 0.1409 3.58MM
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
