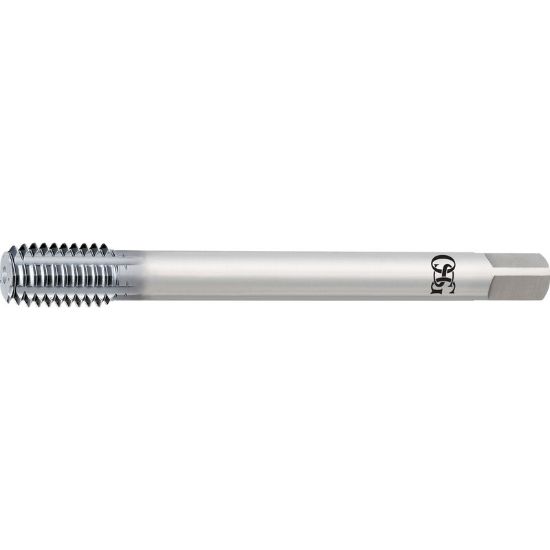

OSG 1635006015 M6-1.00MM Roll Form Mod Bottom 2.5P HSS-CO TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1635006015
Delivery date: 3-5 days
$44.60

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 1
Made In USA No
Shipping State Illinois
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Performance Rating General Performance
Dimensional Specifications
Tap Square 0.1910
Length Type Standard
Overall Len 3.1496 80.00MM
Thread Pitch 1.00MM
Thread Limit D5
Cut Rating <42HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Chamfer 2.5P
Thread Type Metric
Dimension Standard ANSI/ANSI
Thread Size M6
Tool Material Steel
Shank/Pilot Dia 0.2547 6.47MM
Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Tap Style Roll Form
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
