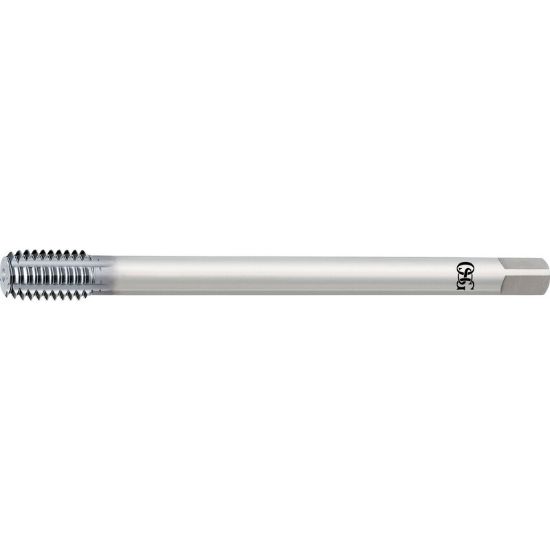

OSG 1625534627 3/4-16.00TPI Over Sized Roll Form Mod Bottom 2.5P HSS-CO TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1625534627
Delivery date: 3-5 days
$301.29

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Roll Form Tapping, Blind Hole Tapping, Mod Bottom Tapping, Over Sized Tapping
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Coating TiCN
Package Size 1
Dimensional Specifications
Thread Size 3/4"
Thread Pitch 16.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.5900 14.99MM
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tool Material Steel
Thread Limit GH7 +0.0035
Tap Chamfer 2.5P
Machine Side Connection Type Tap Collet
Overall Len 7.0870 180.01MM
Tap Square 0.4420
Tap Type Mod Bottom
Length Type Standard
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Over Sized Roll Form
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
