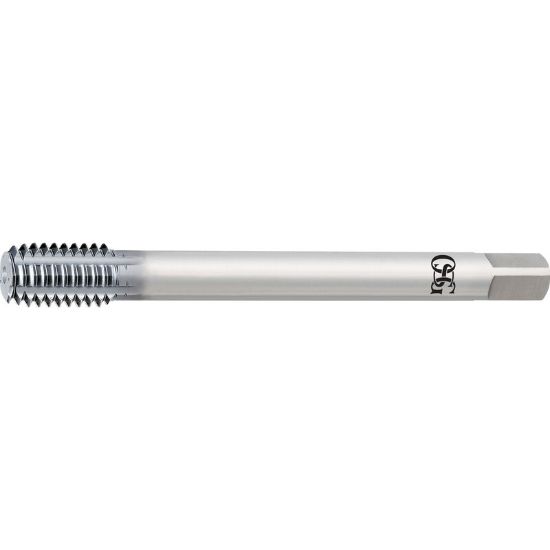

OSG 1625038167 3/8-16.00TPI Over Sized Roll Form Mod Bottom 2.5P HSS-CO TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1625038167
Delivery date: 3-5 days
$79.18

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping, Over Sized Tapping
Coating TiCN
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Shank/Pilot Dia 0.3800 9.65MM
Overall Len 3.9370 100.00MM
Length Type Standard
Tap Type Mod Bottom
Thread Size 3/8"
Thread Type NC/UNC
Cut Rating <42HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Square 0.2850
Tap Chamfer 2.5P
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Thread Limit GH7 +0.0035
Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Tap Style Over Sized Roll Form
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
