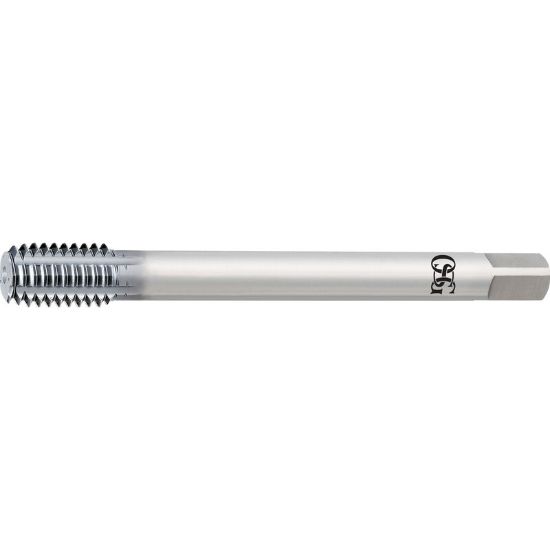

OSG 1625014284 1/4-28.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1625014284
Delivery date: 3-5 days
$51.53

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Coating TiCN
Dimensional Specifications
Tool Material Steel
Thread Limit 3B
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Style Roll Form
Length Type Standard
Tap Square 0.1910
Tap Type Mod Bottom
Thread Size 1/4"
Overall Len 3.1560 80.16MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Tap Chamfer 2.5P
Thread Pitch 28.00TPI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-CO
Industry-Specific Applications
Job Shop Yes
