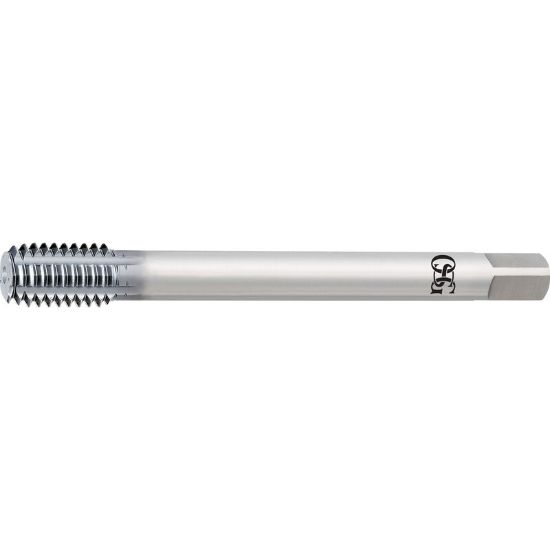

OSG 1625010316 No.10-32.00TPI Roll Form Bottoming 1.5P HSS-CO TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1625010316
Delivery date: 3-5 days
$48.99

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Performance Rating General Performance
Coating TiCN
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 2.7560 70.00MM
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Machine Side Connection Type Tap Collet
Tap Square 0.1510
Tap Style Roll Form
Thread Limit H6/GH6
Tap Chamfer 1.5P
Tool Material Steel
Length Type Standard
Tap Type Bottoming
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-CO
Industry-Specific Applications
Job Shop Yes
