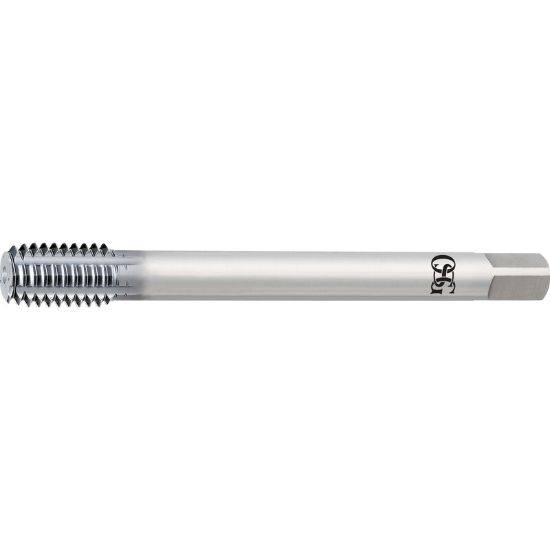

OSG 1625008325 No.8-32.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1625008325
Delivery date: 3-5 days
$45.47

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 1
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Shipping State Illinois
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Size No.8
Cut Rating <42HRC Steel, Stainless Steel
Overall Len 2.4800 62.99MM
Tool Material Steel
Thread Pitch 32.00TPI
Thread Limit H5/GH5
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Chamfer 2.5P
Dimension Standard ANSI/ANSI
Thread Type NC/UNC
Shank/Pilot Dia 0.1670 4.24MM
Drill Range 0.1480 3.76MM - 0.1520 3.86MM
Tap Square 0.1310
Length Type Standard
Tap Style Roll Form
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-CO
Industry-Specific Applications
Job Shop Yes
