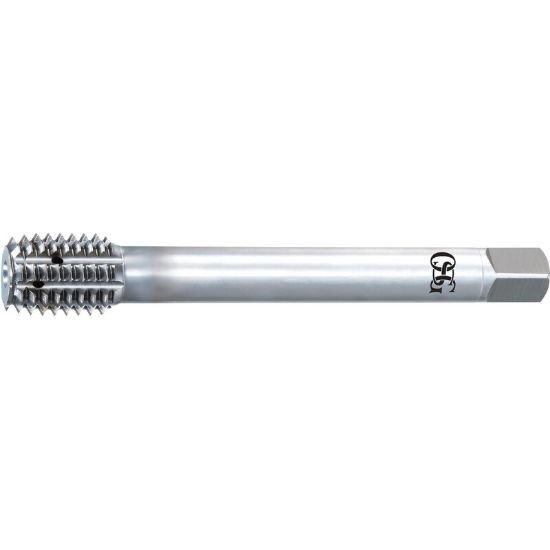

Picture of OSG 1615016207 M16-2.00mm Roll Form Mod Bottom 2.5P HSS-CO TiCN

OSG 1615016207 M16-2.00mm Roll Form Mod Bottom 2.5P HSS-CO TiCN

Part Number: OSG1615016207

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1177009
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG M16x2.00MM Roll Form Mod Bottom 2.5P HSS-CO TiCN D7 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-CO
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating TICN
Overall Length 4.3307 110.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4799 12.19MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 2.00MM
Thread Type METRIC
Thread Size M16
Thread Limit D7
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.3600
Tap Chamfer 2.5P
