  • OSG 1605076205 7/16-20.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiCN

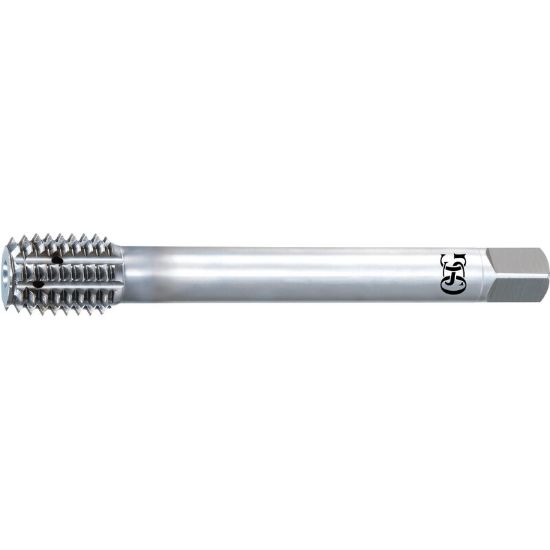

Picture of OSG 1605076205 7/16-20.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiCN

OSG 1605076205 7/16-20.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1605076205
Delivery date: 3-5 days
$91.75

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 1
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Shank/Pilot Dia 0.3230 8.20MM - P
Overall Len 3.9370 100.00MM
Length Type Standard
Thread Pitch 20.00TPI
Drill Range 0.4118 10.46MM - 0.4185 10.63MM
Tap Style Roll Form
Tool Material Steel
Thread Limit H5/GH5
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tap Square 0.2420
Thread Size 7/16"
Cut Rating <42HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Chamfer 2.5P
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
