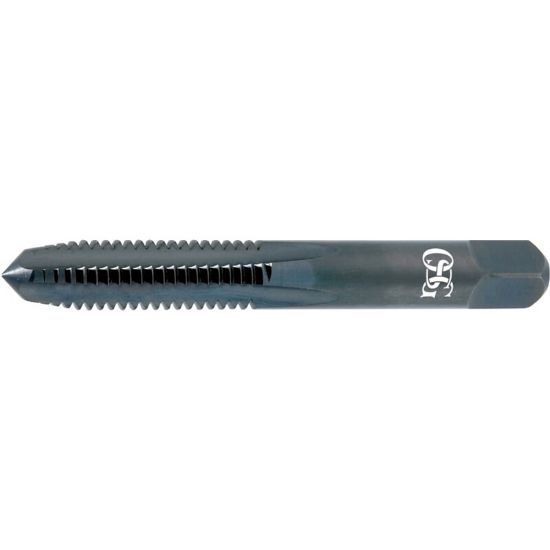

OSG 1595100 No.10-32.00TPI Over Sized Plug Plug 3.5P-4.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1595100
Delivery date: 3-5 days
$5.80

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Through Hole Tapping, Plug Tapping, Tapping, Over Sized Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Tap Square 0.1510
Length Type Standard
Thread Size No.10
Tap Style Over Sized Plug
Thread Limit GH11 +0.005"
Overall Len 2.3750 60.33MM
Tool Material Steel
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Chamfer 3.5P-4.5P
Machine Side Connection Type Tap Collet
Tap Type Plug
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 4
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
