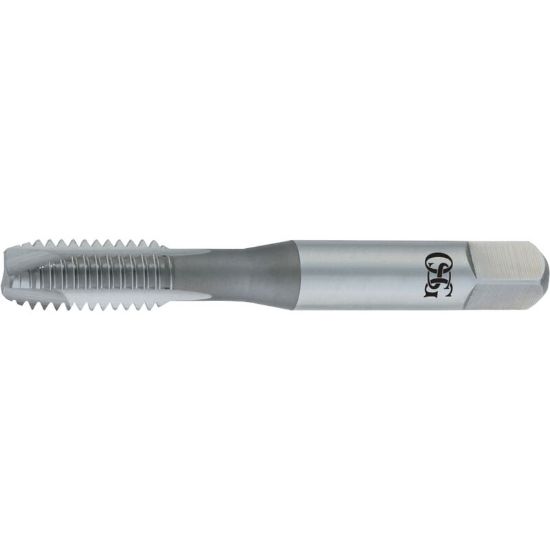

OSG 1592801 No.8-32.00TPI Over Sized Plug Plug 4.0P-4.5P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1592801
Delivery date: 3-5 days
$7.42

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Plug Tapping, Tapping, Over Sized Tapping
Package Size 1
Performance Rating General Performance
Coating Steam Oxide
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Thread Type NC/UNC
Shank/Pilot Dia 0.1670 4.24MM
Flutes/Inserts 2
Tap Square 0.1310
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Limit GH11 +0.005"
Overall Len 2.1250 53.98MM
Thread Size No.8
Tap Type Plug
Tap Style Over Sized Plug
Tap Chamfer 4.0P-4.5P
Machine Side Connection Type Tap Collet
Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
