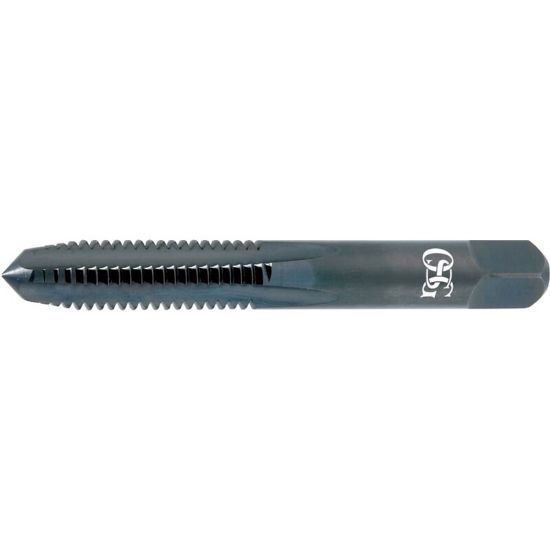

OSG 1591100 5/16-24.00TPI Over Sized Plug Plug 3.5P-4.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1591100
Delivery date: 3-5 days
$8.85

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Plug Tapping, Tapping, Over Sized Tapping, Through Hole Tapping
Performance Rating General Performance
Shipping State Illinois
Dimensional Specifications
Thread Size 5/16"
Flute Direction R - Right
Overall Len 2.7200 69.09MM
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Style Over Sized Plug
Tap Square 0.2380
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Thread Limit GH11 +0.005"
Dimension Standard ANSI/ANSI
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Tap Chamfer 3.5P-4.5P
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Type Plug
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
