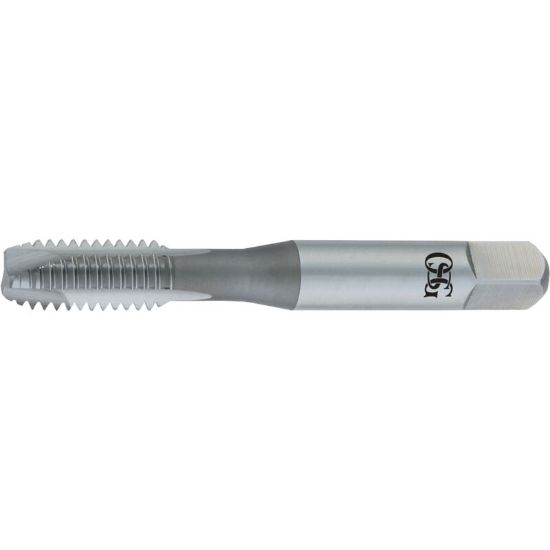

OSG 1590001 1/4-20.00TPI Over Sized Plug Plug 4.0P-4.5P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1590001
Delivery date: 3-5 days
$8.09

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Through Hole Tapping, Over Sized Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Coating Steam Oxide
Dimensional Specifications
Thread Limit GH11 +0.005"
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.1900
Tool Material Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Thread Size 1/4"
Tap Type Plug
Overall Len 2.5000 63.50MM
Tap Style Over Sized Plug
Flute Direction R - Right
Length Type Standard
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flutes/Inserts 2
Tap Chamfer 4.0P-4.5P
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
