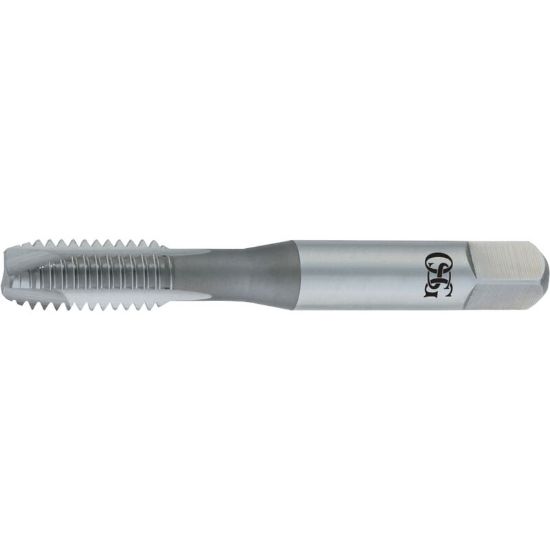

OSG 1590000 1/4-20.00TPI Over Sized Plug Plug 4.0P-4.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1590000
Delivery date: 3-5 days
$8.09

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Tapping, Over Sized Tapping
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Square 0.1900
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flutes/Inserts 2
Flute Direction R - Right
Length Type Standard
Thread Limit GH11 +0.005"
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Thread Size 1/4"
Tap Type Plug
Tool Material Steel
Overall Len 2.5000 63.50MM
Tap Style Over Sized Plug
Tap Chamfer 4.0P-4.5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
