  • OSG 1410104805 M10-1.50MM Roll Form Bottoming 1.5P HSS-CO TiN

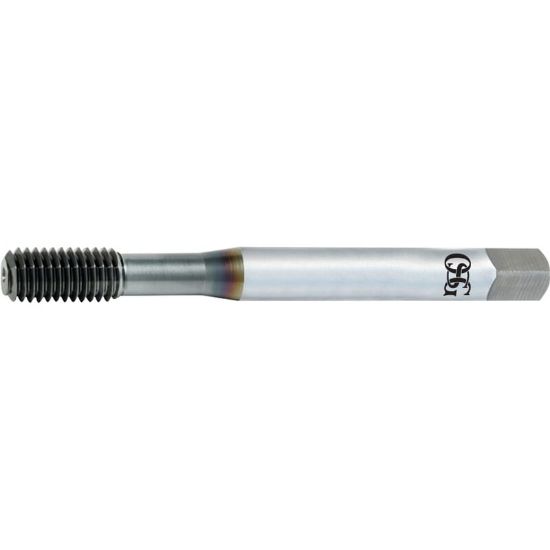

Picture of OSG 1410104805 M10-1.50MM Roll Form Bottoming 1.5P HSS-CO TiN

OSG 1410104805 M10-1.50MM Roll Form Bottoming 1.5P HSS-CO TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1410104805
Delivery date: 3-5 days
$23.07

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Blind Hole Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Performance Rating General Performance
Coating TiN
Shipping State Illinois
Dimensional Specifications
Tap Chamfer 1.5P
Thread Size M10
Thread Type Metric
Thread Limit D6
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.9134 74.00MM
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Tap Style Roll Form
Drill Range 0.3638 9.24MM - 0.3717 9.44MM
Tap Square 0.2860
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Thread Pitch 1.50MM
Tool Material Steel
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-CO
Industry-Specific Applications
Job Shop Yes
