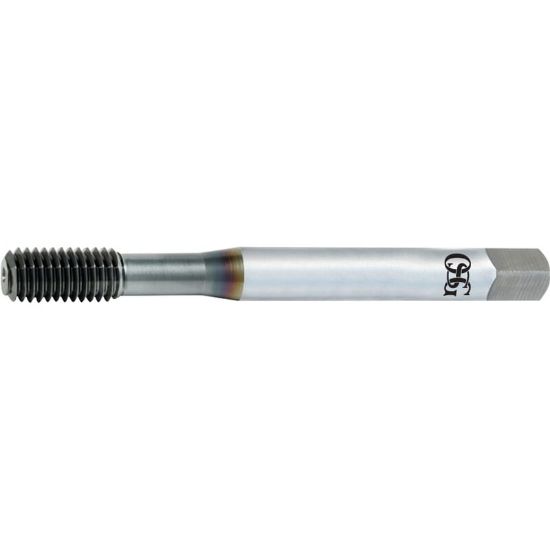

Picture of OSG 1410104205 M8-1.25MM Roll Form Bottoming 1.5P HSS-CO TiN

OSG 1410104205 M8-1.25MM Roll Form Bottoming 1.5P HSS-CO TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1410104205
Delivery date: 3-5 days
$18.25

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Roll Form Tapping, Bottom Tapping, Tapping
Coating TiN
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Thread Size M8
Thread Type Metric
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Limit D5
Machine Side Connection Type Tap Collet
Tap Chamfer 1.5P
Dimension Standard ANSI/ANSI
Overall Len 2.7165 69.00MM
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Tap Style Roll Form
Drill Range 0.2898 7.36MM - 0.2965 7.53MM
Length Type Standard
Tap Type Bottoming
Tap Square 0.2380
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
