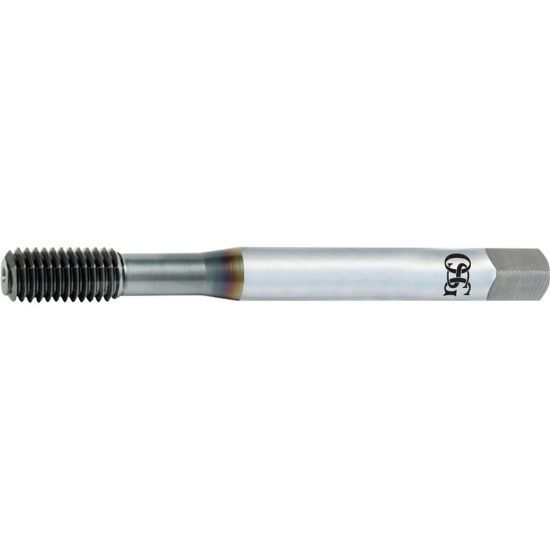

OSG 1410103901 M6-1.00MM Roll Form Mod Bottom 2.5P HSS-CO Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1410103901
Delivery date: 3-5 days
$11.02

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, Tapping, Roll Form Tapping
Made In USA No
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Coating Steam Oxide
Dimensional Specifications
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Tap Square 0.1910
Tap Type Mod Bottom
Thread Type Metric
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.4803 63.00MM
Length Type Standard
Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Tap Style Roll Form
Tool Material Steel
Dimension Standard ANSI/ANSI
Thread Size M6
Shank/Pilot Dia 0.2547 6.47MM
Thread Limit D8
Tap Chamfer 2.5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-CO
Industry-Specific Applications
Job Shop Yes
