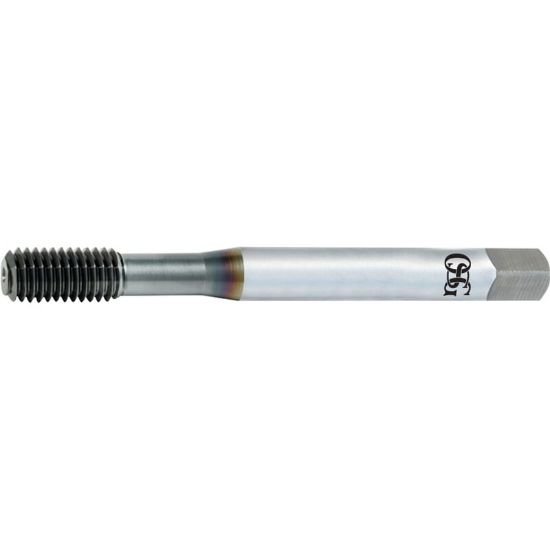

OSG 1410103808 M6-1.00MM Roll Form Mod Bottom 2.5P HSS-CO TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1410103808
Delivery date: 3-5 days
$15.31

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Coating TiCN
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Length Type Standard
Tap Square 0.1910
Tap Type Mod Bottom
Thread Size M6
Shank/Pilot Dia 0.2547 6.47MM
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Tap Chamfer 2.5P
Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Tap Style Roll Form
Thread Type Metric
Overall Len 2.4803 63.00MM
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
