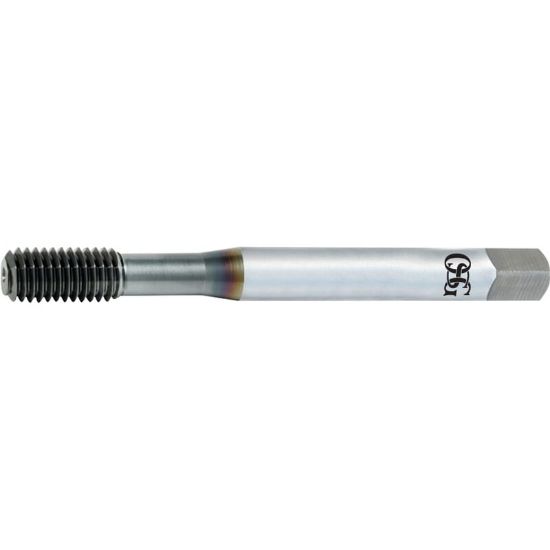

Picture of OSG 1410103605 M6-1.00MM Roll Form Mod Bottom 1.5P HSS-CO TiN

OSG 1410103605 M6-1.00MM Roll Form Mod Bottom 1.5P HSS-CO TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1410103605
Delivery date: 3-5 days
$15.31

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Coating TiN
Package Size 1
Dimensional Specifications
Tool Material Steel
Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Length Type Standard
Tap Style Roll Form
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Type Mod Bottom
Thread Type Metric
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.4803 63.00MM
Tap Square 0.1910
Thread Size M6
Tap Chamfer 1.5P
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
