  • OSG 1410103005 M5-0.80MM Roll Form Bottoming 1.5P HSS-CO TiN

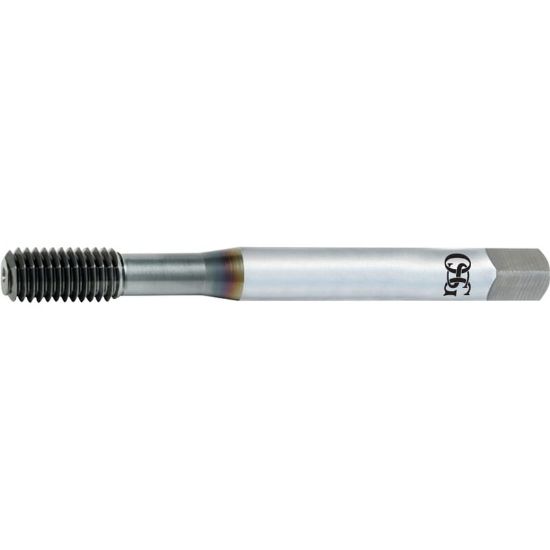

Picture of OSG 1410103005 M5-0.80MM Roll Form Bottoming 1.5P HSS-CO TiN

OSG 1410103005 M5-0.80MM Roll Form Bottoming 1.5P HSS-CO TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1410103005
Delivery date: 3-5 days
$14.65

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Bottom Tapping, Tapping, Blind Hole Tapping, Roll Form Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Coating TiN
Dimensional Specifications
Thread Pitch 0.80MM
Shank/Pilot Dia 0.1940 4.93MM
Thread Size M5
Dimension Standard ANSI/ANSI
Thread Type Metric
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Square 0.1520
Overall Len 2.3622 60.00MM
Tap Chamfer 1.5P
Length Type Standard
Tap Style Roll Form
Tap Type Bottoming
Thread Limit D4
Tool Material Steel
Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-CO
Industry-Specific Applications
Job Shop Yes
