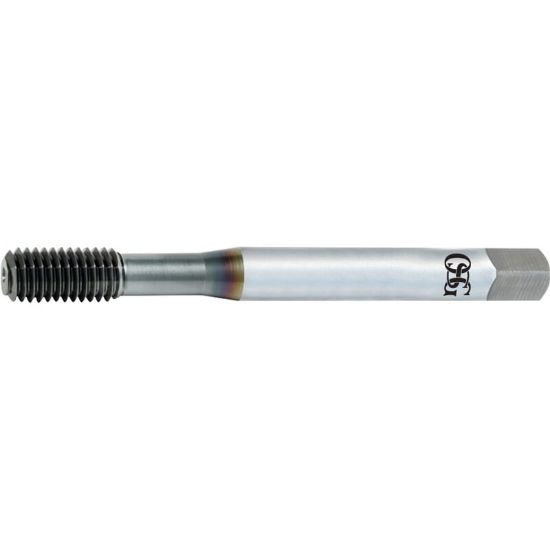

OSG 1410101508 M3-0.50MM Roll Form Bottoming 1.5P HSS-CO TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1410101508
Delivery date: 3-5 days
$14.96

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Made In USA No
Application Roll Form Tapping, Blind Hole Tapping, Bottom Tapping, Tapping
Performance Rating General Performance
Coating TiCN
Dimensional Specifications
Tap Style Roll Form
Thread Pitch 0.50MM
Thread Limit D5
Tool Material Steel
Tap Square 0.1100
Length Type Standard
Tap Type Bottoming
Shank/Pilot Dia 0.1409 3.58MM
Tap Chamfer 1.5P
Thread Type Metric
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 1.9291 49.00MM
Thread Size M3
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-CO
Industry-Specific Applications
Job Shop Yes
