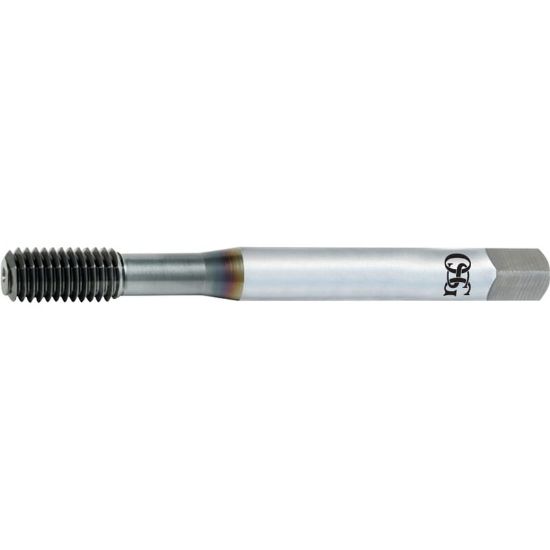

OSG 1410101401 M3-0.50MM Roll Form Bottoming 1.5P HSS-CO Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1410101401
Delivery date: 3-5 days
$13.11

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Bottom Tapping, Tapping, Blind Hole Tapping, Roll Form Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Coating Steam Oxide
Dimensional Specifications
Thread Limit D3
Tool Material Steel
Shank/Pilot Dia 0.1409 3.58MM
Tap Style Roll Form
Thread Size M3
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 1.9291 49.00MM
Thread Type Metric
Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Square 0.1100
Length Type Standard
Tap Type Bottoming
Thread Pitch 0.50MM
Machine Side Connection Type Tap Collet
Tap Chamfer 1.5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-CO
Industry-Specific Applications
Job Shop Yes
