  • OSG 1410100805 M2.5-0.45MM Roll Form Bottoming 1.5P HSS-CO TiN

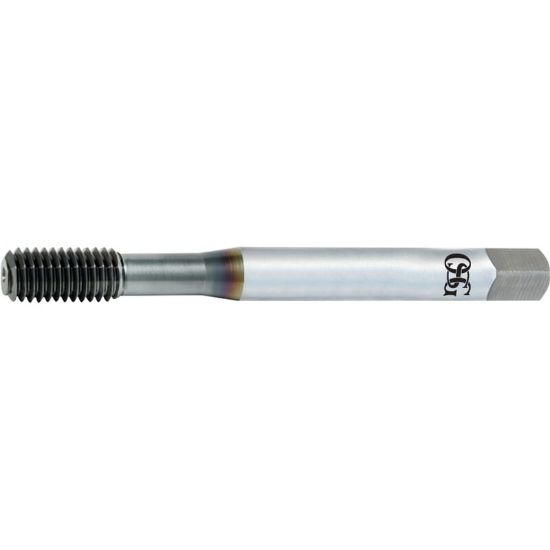

Picture of OSG 1410100805 M2.5-0.45MM Roll Form Bottoming 1.5P HSS-CO TiN

OSG 1410100805 M2.5-0.45MM Roll Form Bottoming 1.5P HSS-CO TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1410100805
Delivery date: 3-5 days
$19.09

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Shipping State Illinois
Package Size 1
Application Blind Hole Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Performance Rating General Performance
Dimensional Specifications
Thread Type Metric
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.0894 2.27MM - 0.0917 2.33MM
Thread Size M2.5
Machine Side Connection Type Tap Collet
Thread Limit D3
Tap Chamfer 1.5P
Tool Material Steel
Tap Square 0.1100
Tap Type Bottoming
Shank/Pilot Dia 0.1410 3.58MM
Thread Pitch 0.45MM
Length Type Standard
Tap Style Roll Form
Overall Len 1.8110 46.00MM
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
