  • OSG 1410100405 M2-0.40MM Roll Form Bottoming 1.5P HSS-CO TiN

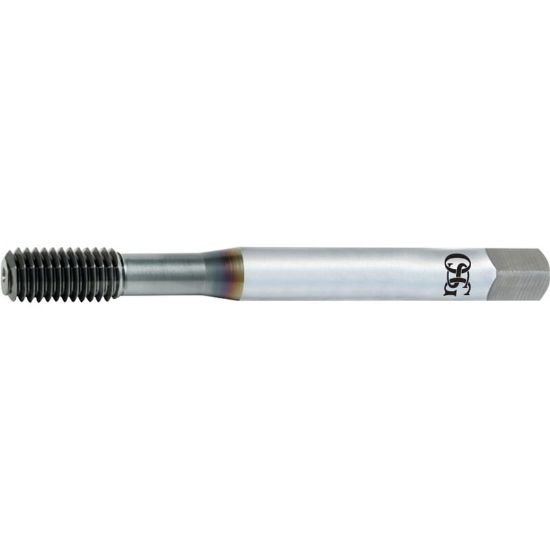

Picture of OSG 1410100405 M2-0.40MM Roll Form Bottoming 1.5P HSS-CO TiN

OSG 1410100405 M2-0.40MM Roll Form Bottoming 1.5P HSS-CO TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1410100405
Delivery date: 3-5 days
$19.09

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Application Blind Hole Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Drill Range 0.0709 1.80MM - 0.0728 1.85MM
Length Type Standard
Tap Style Roll Form
Tap Type Bottoming
Thread Type Metric
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Pitch 0.40MM
Shank/Pilot Dia 0.1410 3.58MM
Dimension Standard ANSI/ANSI
Overall Len 1.7323 44.00MM
Thread Size M2
Tool Material Steel
Tap Square 0.1100
Thread Limit D3
Tap Chamfer 1.5P
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
