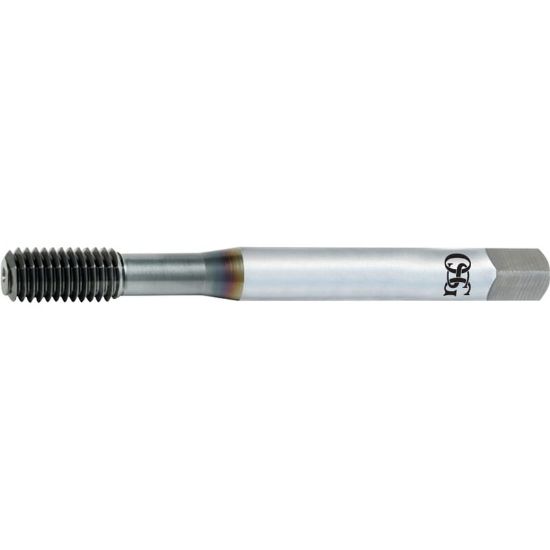

OSG 1410100401 M2-0.40MM Roll Form Bottoming 1.5P HSS-CO Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1410100401
Delivery date: 3-5 days
$17.23

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Roll Form Tapping, Bottom Tapping, Tapping, Blind Hole Tapping
Coating Steam Oxide
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Length Type Standard
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Drill Range 0.0709 1.80MM - 0.0728 1.85MM
Thread Limit D3
Shank/Pilot Dia 0.1409 3.58MM
Overall Len 1.7323 44.00MM
Tap Chamfer 1.5P
Thread Size M2
Tool Material Steel
Tap Square 0.1100
Dimension Standard ANSI/ANSI
Thread Pitch 0.40MM
Thread Type Metric
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Roll Form
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
