  • OSG 1400158008 No.4-40.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiCN

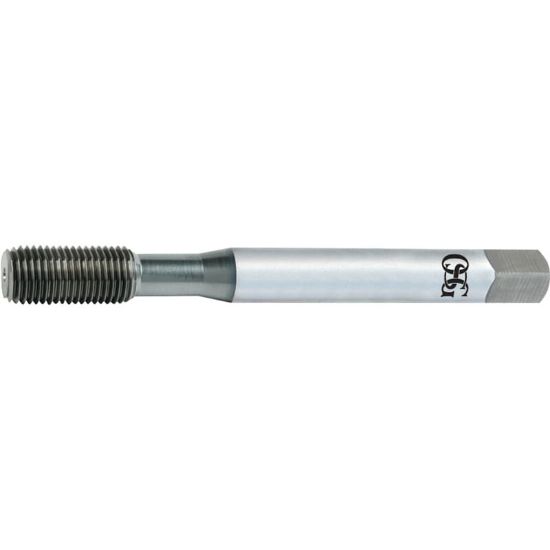

Picture of OSG 1400158008 No.4-40.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiCN

OSG 1400158008 No.4-40.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1400158008
Delivery date: 3-5 days
$15.03

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Coating TiCN
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Limit H8/GH8
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 1.8750 47.63MM
Tool Material Steel
Thread Type NC/UNC
Tap Style Roll Form
Thread Size No.4
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Chamfer 2.5P
Drill Range 0.0992 2.52MM - 0.1024 2.60MM
Tap Square 0.1100
Length Type Standard
Thread Pitch 40.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-CO
Industry-Specific Applications
Job Shop Yes
