  • OSG 1400142808 1/2-13.00TPI Roll Form Bottoming 2.5P HSS-CO TiCN

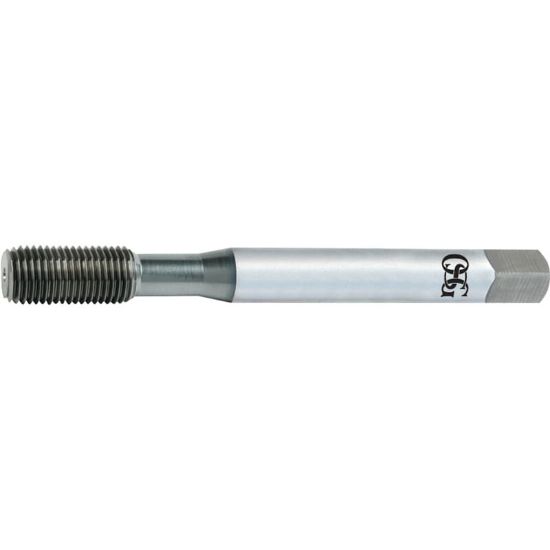

Picture of OSG 1400142808 1/2-13.00TPI Roll Form Bottoming 2.5P HSS-CO TiCN

OSG 1400142808 1/2-13.00TPI Roll Form Bottoming 2.5P HSS-CO TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1400142808
Delivery date: 3-5 days
$36.16

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 1
Shipping State Illinois
Application Blind Hole Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Pitch 13.00TPI
Tool Material Steel
Machine Side Connection Type Tap Collet
Drill Range 0.4606 11.70MM - 0.4720 11.99MM
Tap Square 0.2750
Tap Chamfer 2.5P
Thread Limit H5/GH5
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 3.3750 85.73MM
Thread Size 1/2"
Dimension Standard ANSI/ANSI
Thread Type NC/UNC
Length Type Standard
Tap Style Roll Form
Tap Type Bottoming
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
