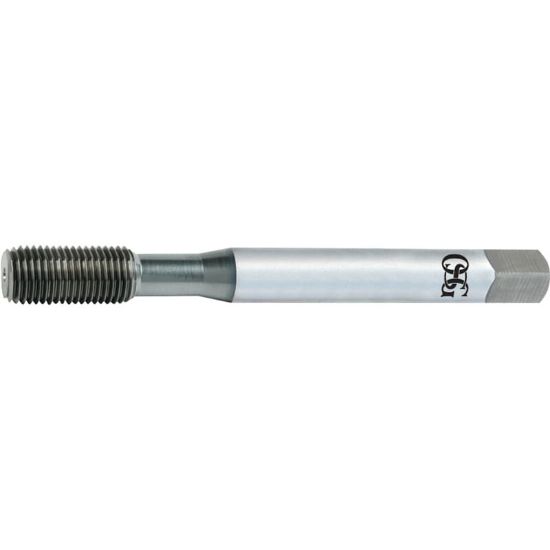

OSG 1400130705 5/16-18.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1400130705
Delivery date: 3-5 days
$18.44

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Application Tapping, Roll Form Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating General Performance
Coating TiN
Made In USA No
Dimensional Specifications
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Thread Pitch 18.00TPI
Tap Style Roll Form
Dimension Standard ANSI/ANSI
Thread Limit H5/GH5
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Drill Range 0.2839 7.21MM - 0.2913 7.40MM
Tap Square 0.2380
Tap Chamfer 2.5P
Thread Size 5/16"
Thread Type NC/UNC
Overall Len 2.7200 69.09MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
