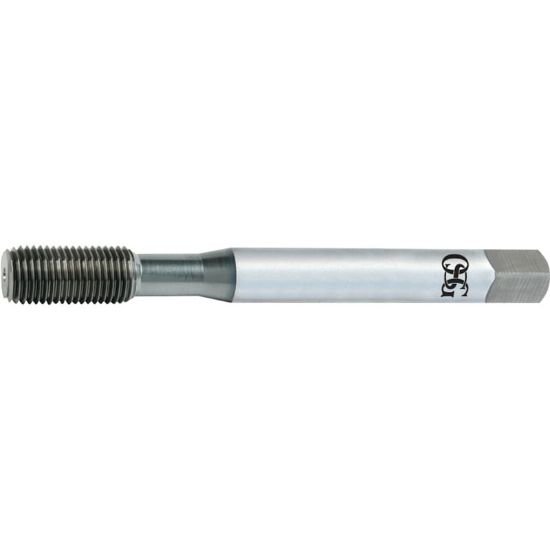

Picture of OSG 1400130705 5/16-18.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiN

OSG 1400130705 5/16-18.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiN

Part Number: OSG1400130705

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176998
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG 5/16"x18.00TPI Roll Form Mod Bottom 2.5P HSS-CO TiN H5/GH5 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-CO
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating TIN
Overall Length 2.7200 69.09MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 18.00TPI
Thread Type NC/UNC
Thread Size 5/16"
Thread Limit H5/GH5
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2839 7.21MM - 0.2913 7.40MM
Tap Square 0.2380
Tap Chamfer 2.5P
