  • OSG 1400128605 1/4-28.00TPI Roll Form Bottoming 2.5P HSS-CO TiN

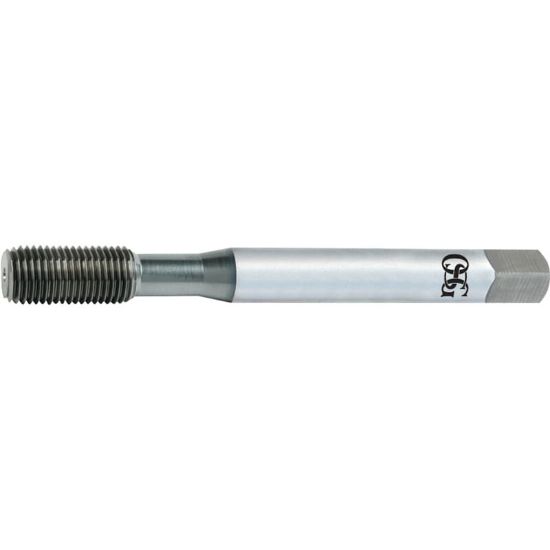

Picture of OSG 1400128605 1/4-28.00TPI Roll Form Bottoming 2.5P HSS-CO TiN

OSG 1400128605 1/4-28.00TPI Roll Form Bottoming 2.5P HSS-CO TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1400128605
Delivery date: 3-5 days
$14.65

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, Roll Form Tapping, Blind Hole Tapping
Performance Rating General Performance
Coating TiN
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Limit H6/GH6
Tool Material Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Chamfer 2.5P
Overall Len 2.5000 63.50MM
Drill Range 0.2315 5.88MM - 0.2362 6.00MM
Tap Square 0.1910
Length Type Standard
Tap Type Bottoming
Thread Pitch 28.00TPI
Tap Style Roll Form
Thread Size 1/4"
Cutting & Machining Properties
Cutting Edge Mat HSS-CO
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
