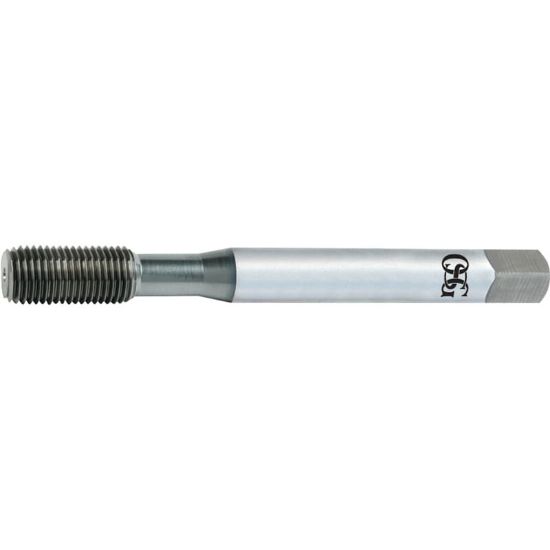

Picture of OSG 1400127300 1/4-20.00TPI Roll Form Plug 4.5P HSS-CO Uncoated

OSG 1400127300 1/4-20.00TPI Roll Form Plug 4.5P HSS-CO Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG1400127300
Delivery date: 3-5 days
$11.02

Cutting Edge Definition

High speed steel cobalt is a premium grade that offers higher performance compared to traditional high speed steels. Due to increased hardness, these end mills last longer in today's abrasive, heat resistant and exotic materials.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Roll Form Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Thread Pitch 20.00TPI
Thread Type NC/UNC
Tap Style Roll Form
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.2244 5.70MM - 0.2311 5.87MM
Length Type Standard
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Thread Limit H6/GH6
Tool Material Steel
Thread Size 1/4"
Tap Type Plug
Tap Chamfer 4.5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-CO
Industry-Specific Applications
Job Shop Yes
